Enterprise HDD

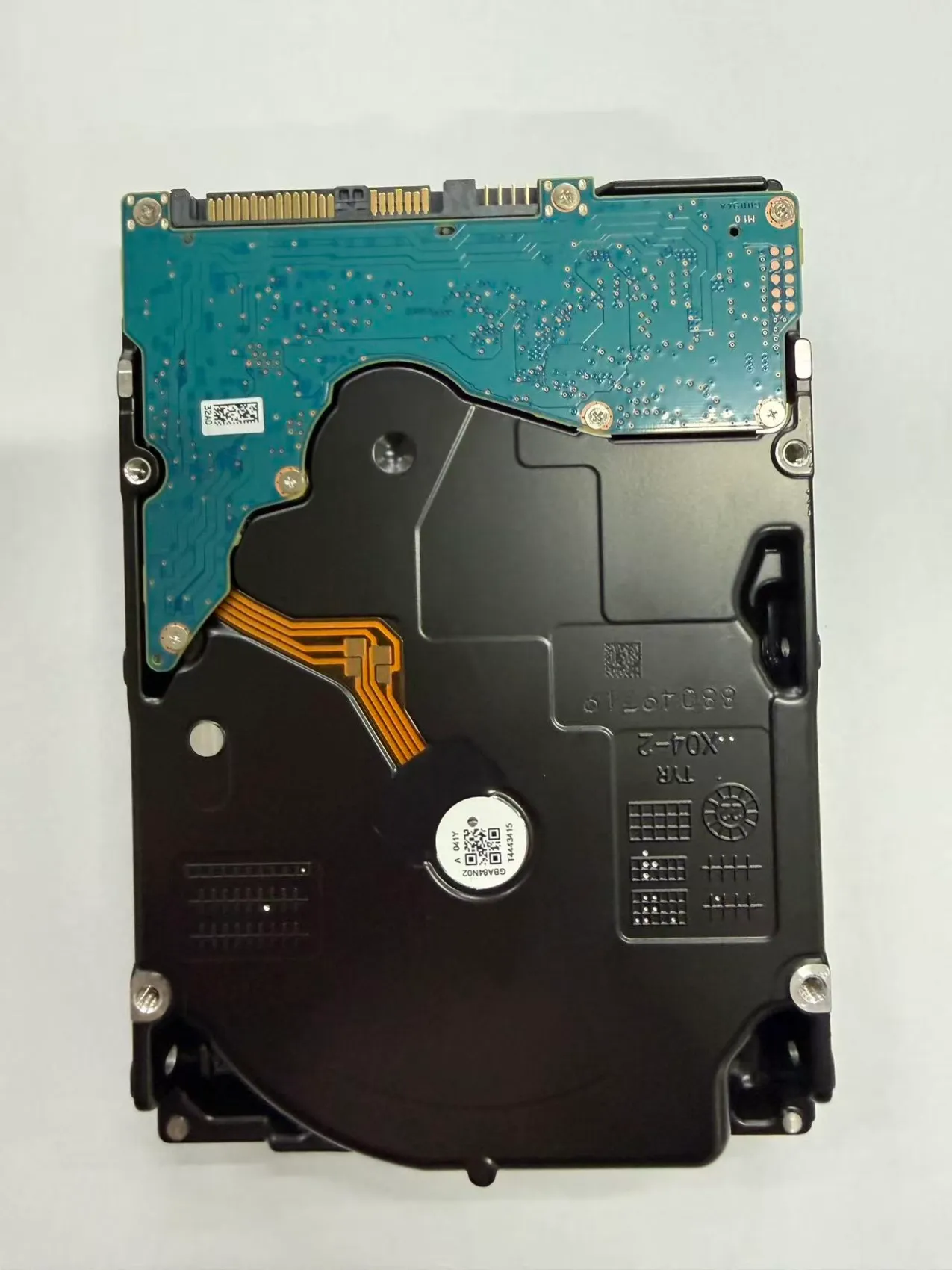

Toshiba MG10 20TB Enterprise HDD for Data Center Storage
Toshiba MG10 20TB enterprise HDD designed for data centers, servers, backup infrastructure and high-capacity enterprise storage deployments.
Specifications
- Brand
- Toshiba
- Series
- MG10
- Capacity
- 20TB
- Form Factor
- 3.5-inch
- Rotation Speed
- 7,200 RPM
- Recording
- CMR
- Interface
- SATA 6Gb/s / SAS 12Gb/s*
- Buffer
- 512MiB
- Sustained Transfer
- Up to 268 MiB/s
- Workload
- 550TB/year
- MTBF
- 2.5 million hours
- AFR
- 0.35%
- Sector Format
- 512e / 4Kn
- Helium Sealed
- Yes
- Disk Count
- 10-disk
- Application
- Cloud / Data Center / Enterprise Storage
The Toshiba MG10 20TB is a high-capacity enterprise HDD designed for cloud-scale servers, data center storage, backup infrastructure and enterprise storage systems.
The MG10 series uses conventional magnetic recording (CMR), a 3.5-inch form factor, 7,200 RPM operation and a helium-sealed 10-disk design. Toshiba specifies a 550TB/year workload rating and 2.5 million-hour MTTF/MTBF class reliability.
Toshiba offers multiple 20TB configurations, including SATA and SAS interfaces and both 512e and 4Kn sector formats. Example 20TB models include MG10ACA20TA, MG10ACA20TE, MG10SCA20TA and MG10SCA20TE.
Typical applications include cloud-scale storage, software-defined data centers, object and file storage, backup infrastructure, data archives and enterprise storage systems.
Exact part number, interface and sector format should be confirmed before deployment.
XIYATU supports enterprise HDD sourcing according to capacity, interface, SKU and project requirements.
